Best quality Die Steel Pipe punching machine/Tube punching machine/Eyelet punching machine

FOB Reference Price:Get Latest Price
US $1,500-5,000 / Sets | 1 Set/Sets Tube Punching Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Power Source:
Hydraulic
Place of Origin:
Henan, China (Mainland)
Brand Name:
DY Tube Punching Machine
Model Number:
DHP-80 Pipe Punching Machine
Voltage:
380V
Power(W):
3kw
Weight:
240kg
Dimension(L*W*H):
600*850*1380mm
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Green/Yellow/Blue
Name:
punching machine
Application:
Stainless steel pipe/Aluminum alloy tube/Galvanized stell pipe
power:
380v 50hz
Working speed:
30-60times/min
Punching hole size:
For round hole Dia :0.5-40mm
Punching thickness:
0.5-3mm
Punching tube length:
3-6m
Usage:
Metal Press
warranty:
1 YEAR
Supply Ability
Supply Ability:
80 Set/Sets per Week Pipe Punching Machine
Packaging & Delivery
Packaging Details
Wooden Case of Tube Pipe Pucnhing Machine
Port
qingdao/ shanghai
Lead Time :
7 working days after payment

Best quality Die steel Pipe punching machine/Tube punching machine/Eyelet punching machine

Feature of Pipe Punching Machine

 1. It is used for Iron pipe,Stainless steel pipe,Carbon steel and Aluminu m alloy.

 2. Change mold easily,we can customize it as per request.

 3.The hole shape can be customized as per the request.

 4. Hydrau-cylinder control ,more stable .

 5.Punching holes are smooth and no burrs and no deformation.

 6.Half Hole or Completely hole are available .

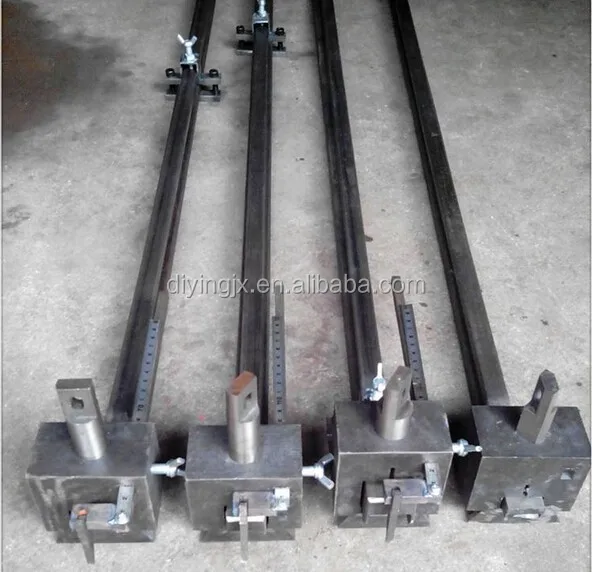

            The shelves to fixed long pipe,to ensure punching hole on a straight line:




A ruler is adjust the distance between holes and holes :

IMG_1732.JPG  QQ20151218162425.jpg

Parameter of Tube Punching Machine

Model

DHP-80

Hydraulic cylinder dia

80mm

Motor power

3kw 380v 50hz

Working speed

30-60times/min

Punching hole size

For round hole Dia :0.5-40mm

For square hole : length: not long than tube

Width:0.5-40mm

Punching thickness

0.5-3mm

Punching tube length

3-6m

Machine size

600*850*1380mm

Machine weight

240kg

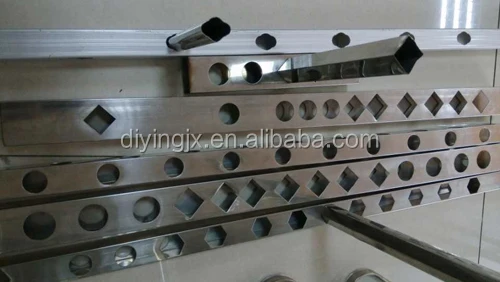

punching:round hole ,square hole,Hexagonal hole ect (you can customize mold you need)1.jpg    3.jpg
